Technical information and printable instructions

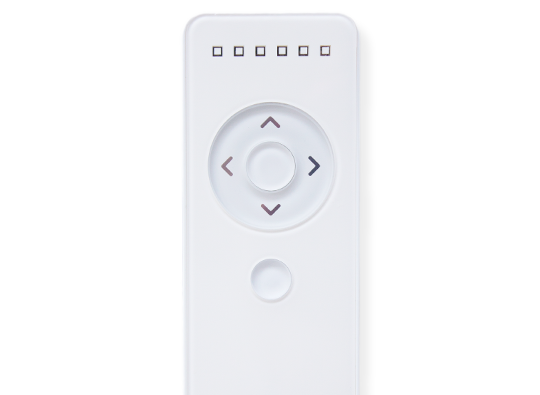

Neo Smart Blinds Remote Control RC201 RC202 and RC206

Remote Control RC-201, RC-202 and RC-206

  • Compatible motors: All Neo motors, except TM-WB
  • Radio specification: ASK 433.92MHz, 10dBm
  • Number of channels: 1, 2 and 6
  • Battery model: CR2450

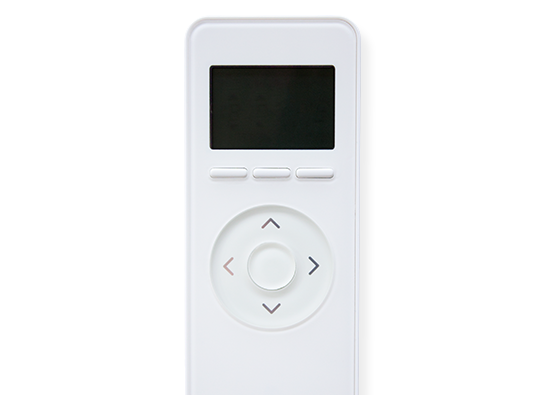

Neo Smart Blinds Remote Control RC215 and RC230

Remote Control RC-215 and RC-230

  • Compatible motors: All Neo motors, except TM-WB
  • Radio specification: ASK 433.92MHz, 10dBm
  • Number of channels: 15 and 30
  • Battery model: CR2450

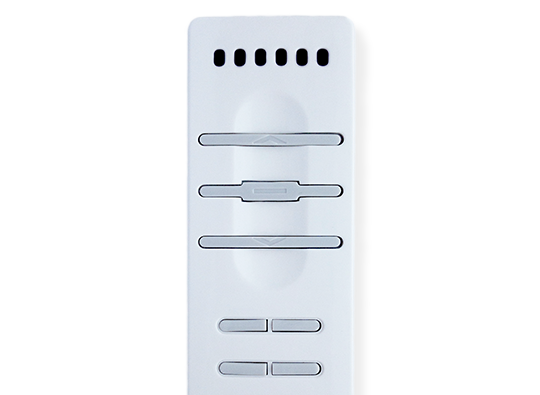

Neo Smart Blinds Remote Control RC102 and RC106

Remote Control RC-102 and RC-106

  • Compatible motors: All Neo motors, except TM-WB
  • Radio specification: ASK 433.92MHz, 10dBm
  • Number of channels: 2 and 6
  • Battery model: CR2032

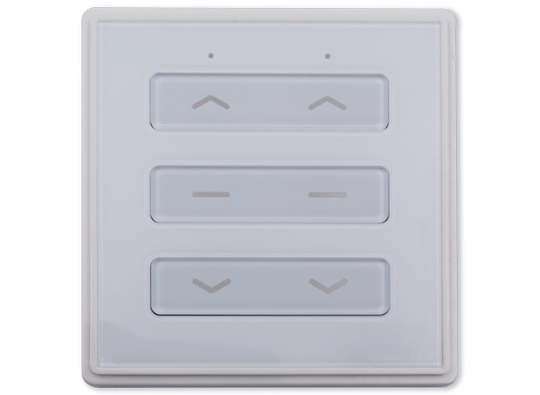

Neo Smart Blinds Wall Remote Control WS202

Wall Remote Control WS-202

  • Compatible motors: All Neo motors, except TM-WB
  • Radio specification: ASK 433.92MHz, 10dBm
  • Number of channels: 2
  • Battery model: CR2032

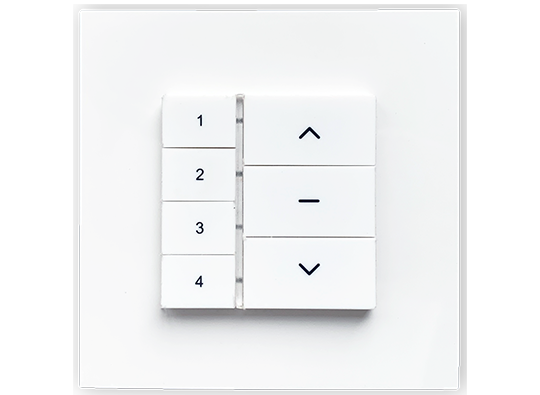

Neo Smart Blinds Wall Remote Control WS204

Wall Remote Control WS-204

  • Compatible motors: All Neo motors, except TM-WB
  • Radio specification: ASK 433.92MHz, 10dBm
  • Number of channels: 4
  • Battery model: CR2032

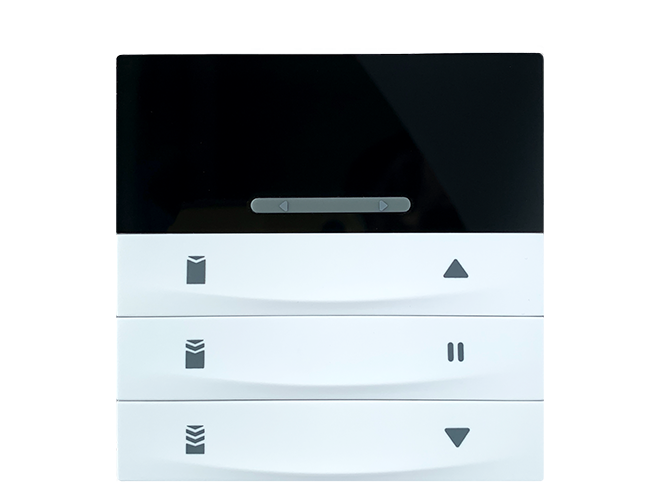

Neo Smart Blinds Wall Remote Control WS208

Wall Remote Control WS-208

  • Compatible motors: All Neo motors, except TM-WB
  • Radio specification: ASK 433.92MHz, 10dBm
  • Number of channels: 8
  • Battery model: CR2032

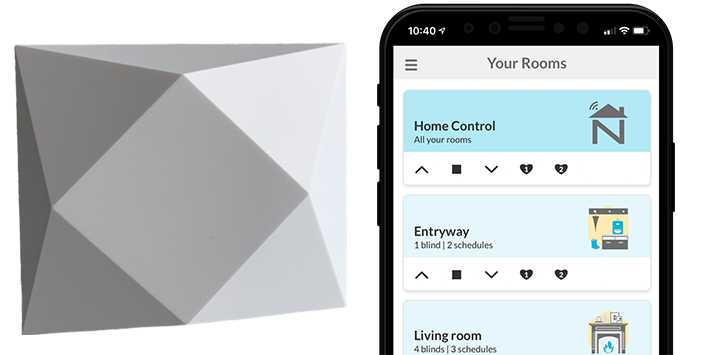

Neo Smart Blinds - Smart Controller Instructions

Smart Controller

updated on April 11, 2025
  • Compatible with all major motor blinds with extra features for Neo Blue Motors
  • Compatible brands: Allen+Roth, Alpha, Alta Bliss, A-OK, Arabel, BAST, Blinds.com, Bofu/Simplicity, Budget Blinds, ComfyShade, Dooya, Dooya Bi-directional, Eclipse, Gaposa, Jiecang, Levolor, Louvolite, Maxxmar, MotionBlinds, Neo Smart Blinds, Nice, Raex, Rollease Arc, Rollease Basic, Rollerhouse, Ronco, Select Blinds, SmartWings, Somfy RTS, Sunfree Radio+, Turnils AMP, Wistar.
  • Radio Frequency: 433.42 - 434.15 MHz
  • WiFi: 2.4GHz (IEEE 802 11b/g/n)
  • Security: WPA2-Personal or WPA3-Personal
  • Power sources: 5V/1A USB charger
  • Check SBH20 Compatible Blinds

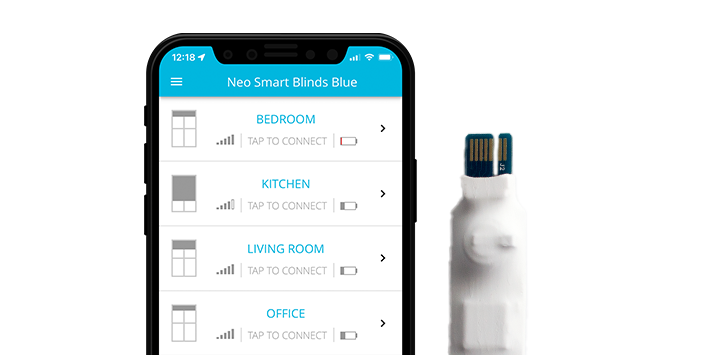

Neo Smart Blinds - Blue Link Installer's Guide

Blue Link

  • Compatible with Neo Smart Blinds motors equipped with a Blue Link connection
  • Blue Link will add feedback capabilities and percentage position control via Bluetooth when connected to a compatible motor.
  • Using the Neo Smart Blinds Blue app, you can locally control and create schedules for each blind.
Neo Smart Blinds Wand Motor

Wand Motors

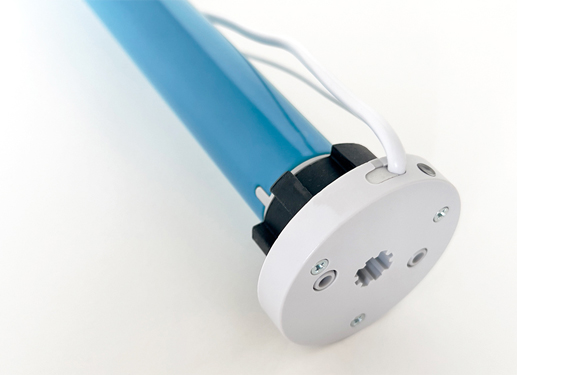

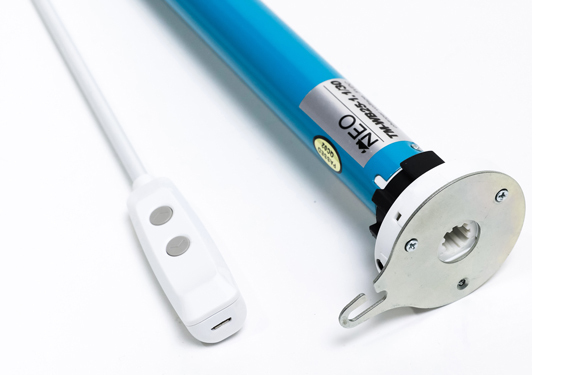

Neo Smart Blinds Battery Motor 25mm

Battery Tubular Motor

  • Radio specification: ASK 433.92MHz
  • Power sources: 5V/1A charger or 2W/15V solar panel

  • Manufactured Before August 2024
  • TM-RB25-1.1/30, TM-RB25-C-1.1/30  supports external Blue Link
  • TM-BRB25-C-1.1/30, TM-BRB25-CN-1.1/30  internal Blue Link
  • Electrical parameters: 8.4V DC internal rechargeable battery
  • Operational parameters: 1.1Nm, 30rpm

  • Manufactured After August 2024
  • TM-RB25-C-1.1/30, TM-RB25-CN-1.1/30  supports external Blue Link
  • TM-BRB25-C-1.1/30, TM-BRB25-CN-1.1/30  internal Blue Link
  • Electrical parameters: 8.4V DC internal rechargeable battery
  • Operational parameters: 1.1Nm, 30rpm

  • TM-RB25-C-2/22-26  supports external Blue Link
  • Electrical parameters: 12.6V DC internal rechargeable battery
  • Operational parameters: 2Nm, 3 adjustable speeds between 22 to 26 rpm

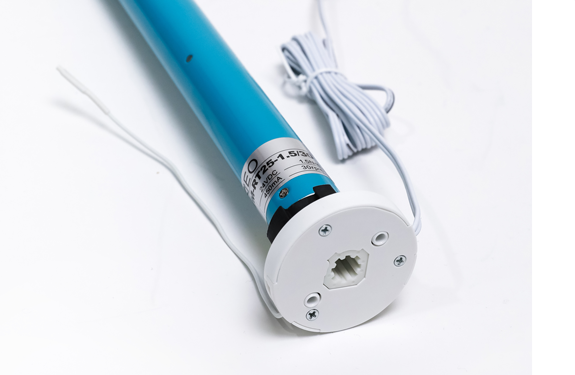

Neo Smart Blinds Transformer Motor 25mm

Transformer Tubular Motor

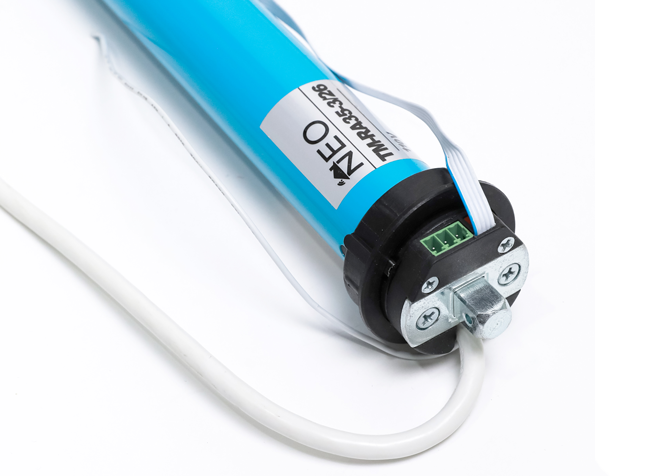

Neo AC Tubular Motor 35 and 45mm

Neo AC Tubular Motor

  • Radio specification: ASK 433.92MHz

  • TM-RA35-3/26
  • Electrical parameters: 110V AC 110W 60Hz
  • Operational parameters: 3Nm, 26rpm

  • TM-RA45-12/26
  • Electrical parameters: 110V AC 145W 60Hz
  • Operational parameters: 12Nm, 26rpm

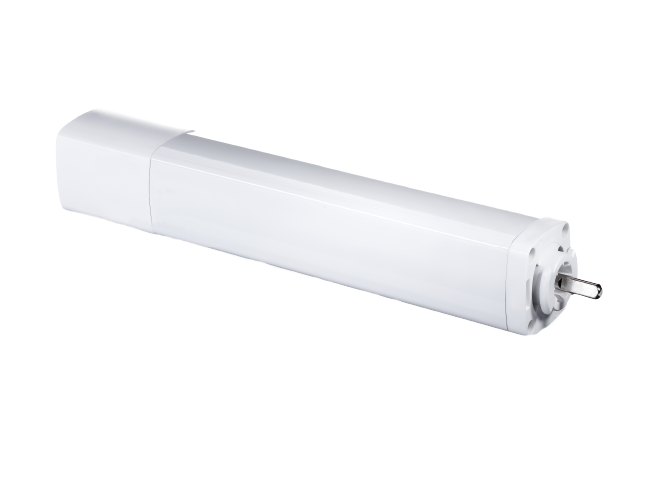

Neo Smart Blinds Curtain Motor

Curtain Motor

  • Radio specification: ASK 433.92MHz

  • CM-BRE40 and CM-RE40
  • Electrical parameters: 15V DC external rechargeable lithium battery
  • Power sources: wall charger or 2W/15V solar panel

  • CM-WRT40 and CM-RT40
  • Electrical parameters: 24V power adapter
  • Power sources: 24V power adapter

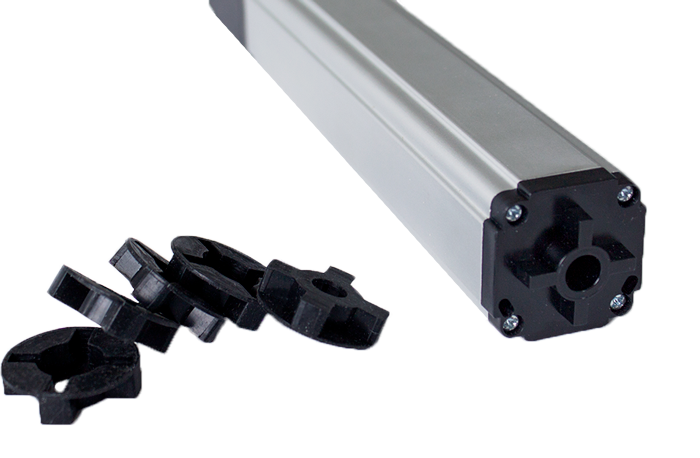

Neo Venetian Motor

Neo Venetian Motor

  • VM-RT40-2/26
  • Radio specification: ASK 433.92MHz
  • Electrical parameters: 24V DC, external AC/DC
  • Operational parameters: 2Nm, 26rpm

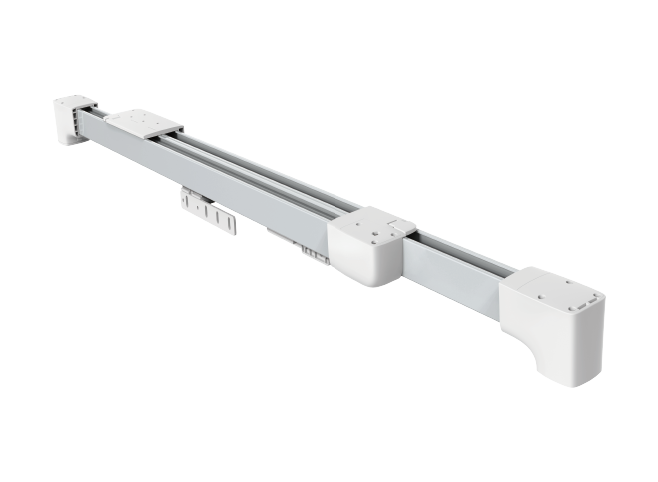

Go Smart Blinds Curtain Track

Go Smart Curtains Extendable Track

  • Models: CUR-PLU-FR-3M, CUR-BAT-FR-3M, CUR-SMA-FR-3M, CUR-PLU-FR-4M, CUR-BAT-FR-4M, CUR-SMA-FR-4M
  • Compatible motors: CM-RE40, CM-RT40, CM-BRE40, CM-WRT40

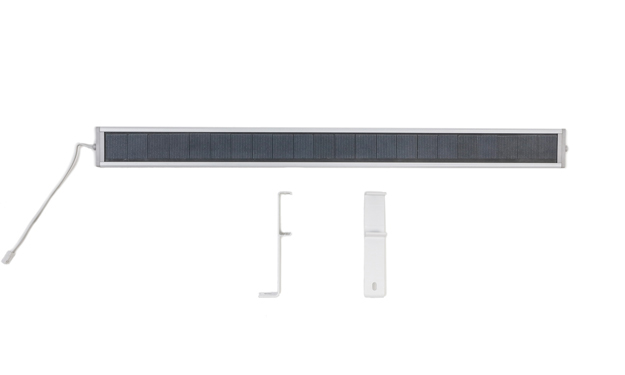

Neo Solar Panel

Neo Solar Panel

  • Compatible with all Neo battery-driven motors
  • Indoor use only

  • SP-2/11
  • Electrical parameters: 11V, 181mA
  • Maximum power output: 2W

  • SP-2/15
  • Electrical parameters: 15V, 133mA
  • Maximum power output: 2W
